MZJ360-3 Baking free brick making machine

Our high pressure baking-free brick making machine MZJ series have passed ISO certification and national patent. Our machine have exported to Our products are exported to South east Asia, Middle East, Africa, East Europe, South America and other countries and regions. We have won a good reputation at home and abroad because of good quality and service.
360Ton high pressure backing-free brick making machine :MZJ360-3
1.making different bricks : solid standard bricks, blind hole bricks, hollow blocks
2.Size of bricks :240*115*53mm,240*115*90mm,240*115*65mm,240*100*60mm etc.;
3.Low labor cost(just need 5 workers),low investment low noise ;low failure;
4.High pressure(more than 10 Mpa / brick), high output(25600pcs-28800pcs per 8/hours), high quality ;
5.Not sintering ,no need autoclave, no need pallets ;

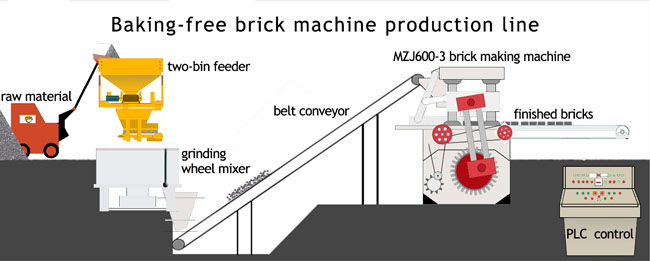

Main Introduction of high pressure backing-free MZJ360-3 brick making machine producing line:

Ingredients → Grinding Material → Pressure Molding → Natural Curing

1.Raw material:concrete ,cement,construction waste ,fly ash,sand etc. Almost free and widely spread.
2.Edge runner mill: mixing the raw material uniformly,adopted special stir to make sure the raw material can be perfectly mixed uniformly, the reducer is using the superior quality ,working life is 8-10 years.
3.Feeding hopper:feeding the material,make suer the machine working normally, the perfect angle makes sure the raw material baiting uniform and flow smoothly.
4.Pressure molding machine:MZJ360-3 main machine
A):Capacity is 3200-3600bricks /hour.
B):The body of machine using stainless steel in 30mm.
C):Bearings design: lower the noise effectively and energy saving.
D):Machine is adopted the exhaust plant and the forced charging design ,to make sure density of raw material in the mold box, so that the bricks are high density, high strength, good quality.

5.Natural curing:
A):The bricks produced by MZJ360-3 brick making machine can stacking directly, no need pallets.
B):Curing with water after 24 hours (MZJ-360-3 brick making machine)
C):2 times/ day in the spring, autumn,and 3 times/day in summer.

6. Brick sample

                                         Can produce the following brick types (mm)

Technical date of high pressure backing-free brick making machine MZJ360-3

The brick made by high pressure backing-free brick making machine
A): high strength :more than 10Mpa/brick,Can be used to build houses
B):good looking low failure rate less than 3%
ISO certification of high pressure backing-free brick making machineMZJ360-3
High pressure backing-free brick making machine:MZJ360-3exported to all over the world
